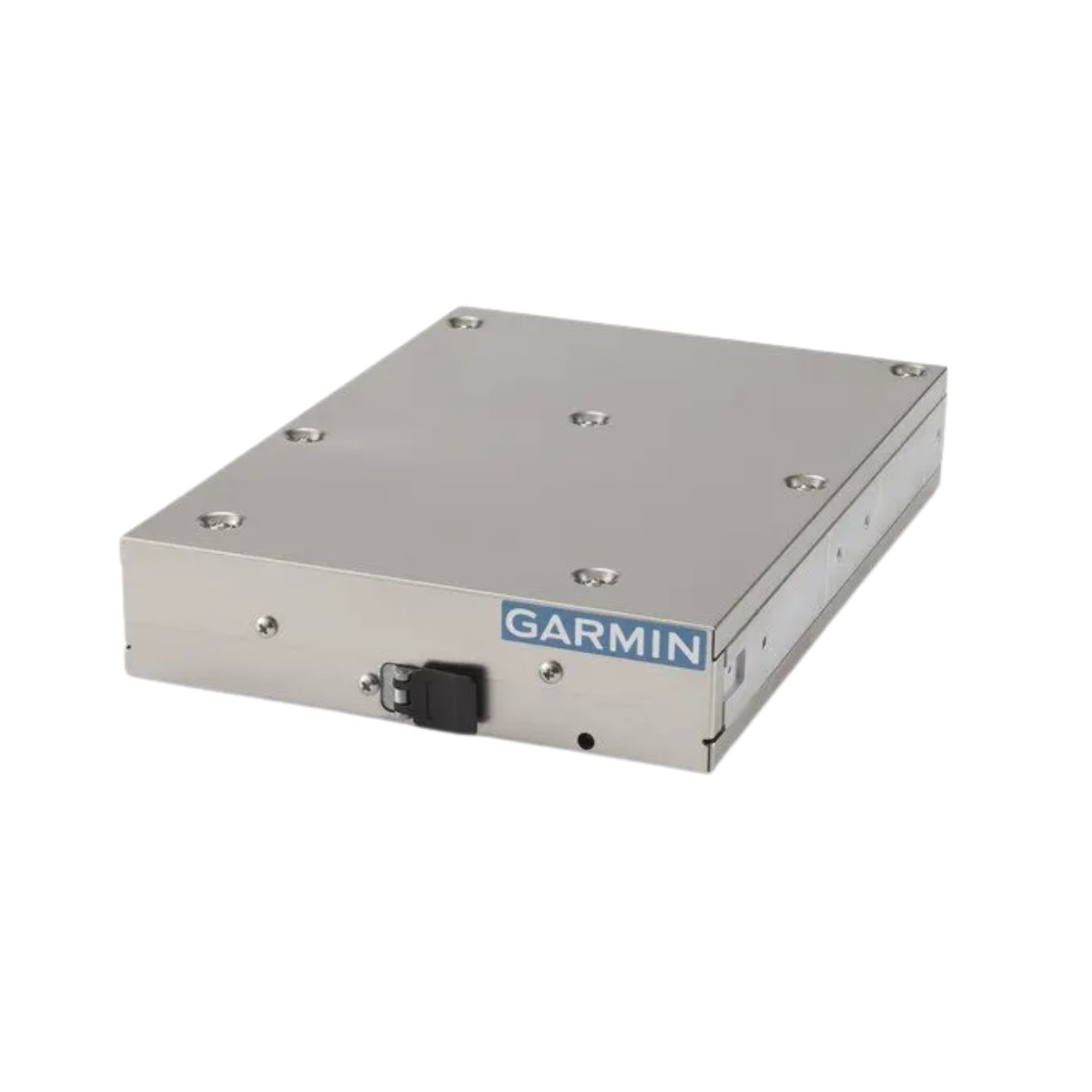

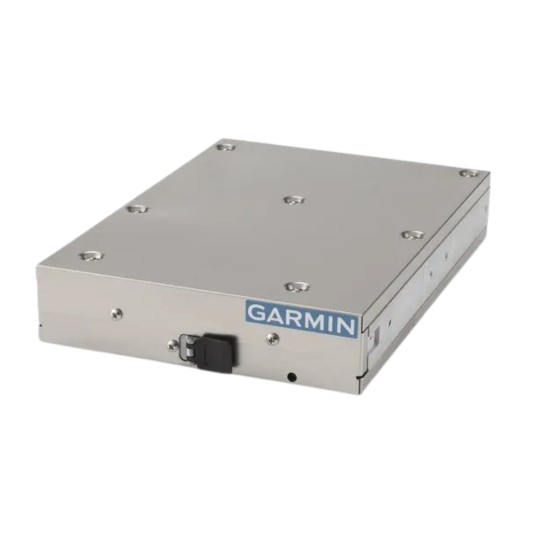

GTX 335R Remote-mount ADS-B "Out" Transponder with GPS

<h3>Physical &amp; Performance</h3>
<ul>
<li>Physical dimensions (unit, rack, connectors): for panel mounts, depth is measured from face of instrument panel: 1.65&rdquo; x 6.30&rdquo; x 9.9&rdquo; (42 x 160 x 224 mm)</li>
<li>Display type: N/A</li>
<li>Weight (unit, rack, connectors): 2.5/2.6 lbs (1.13/1.18 kg)</li>
<li>Voltage range: 14/28 VDC (15/17 W Max)</li>
<li>Transmit power: 200 W minimum</li>
<li>Temperature: -45&deg; C to +70&deg; C</li>
<li>Operating altitude: To 55,000 ft (16,800 m)</li>
<li>Cooling input:&nbsp; Not required</li>
<li>Environmental compliance (TSO Approved): DO-160G</li>
<li>Software compliance (TSO Approved): DO-178 Levels B, C, D</li>
<li>Hardware compliance (TSO Approved): DO-254 Level C; TSO compliance (Approved); TSO-C88b (w/opt. alt. encoder); TSO-C112e (Class 1, Level 2els); TSO-C145d (Class B2); TSO-C166b (Class B1S)&rdquo;</li>
<li>Mount type: Remote</li>
<li>Transponder type: Mode A/C, S and ES</li>
<li>Squawk code selection: Remote entry</li>
<li>Traffic Information Services (TIS) alerts compatible: Yes</li>
</ul>
<h3>Transponder Features&nbsp;&nbsp;&nbsp;</h3>
<ul>
<li>Solid state transmitter (more efficient, longer life): Yes</li>
<li>Aural alerts: Yes</li>
<li>Automatic ALT/GND mode: Yes</li>
<li>1090 MHz ADS-B Out: Yes</li>
<li>Built in GPS/WAAS receiver: Optional</li>
<li>Displays on G500/G600, GTN 650/750, GNS 430W/530W, and others: Yes</li>
<li>Pressure altitude encoder module (mounts to connector backplate): Optional</li>
</ul>
