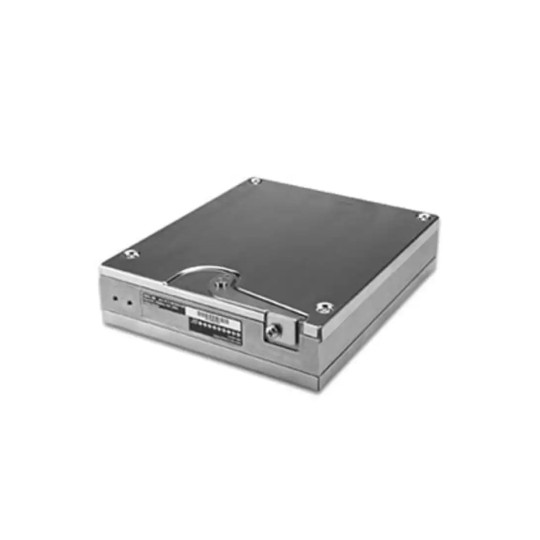

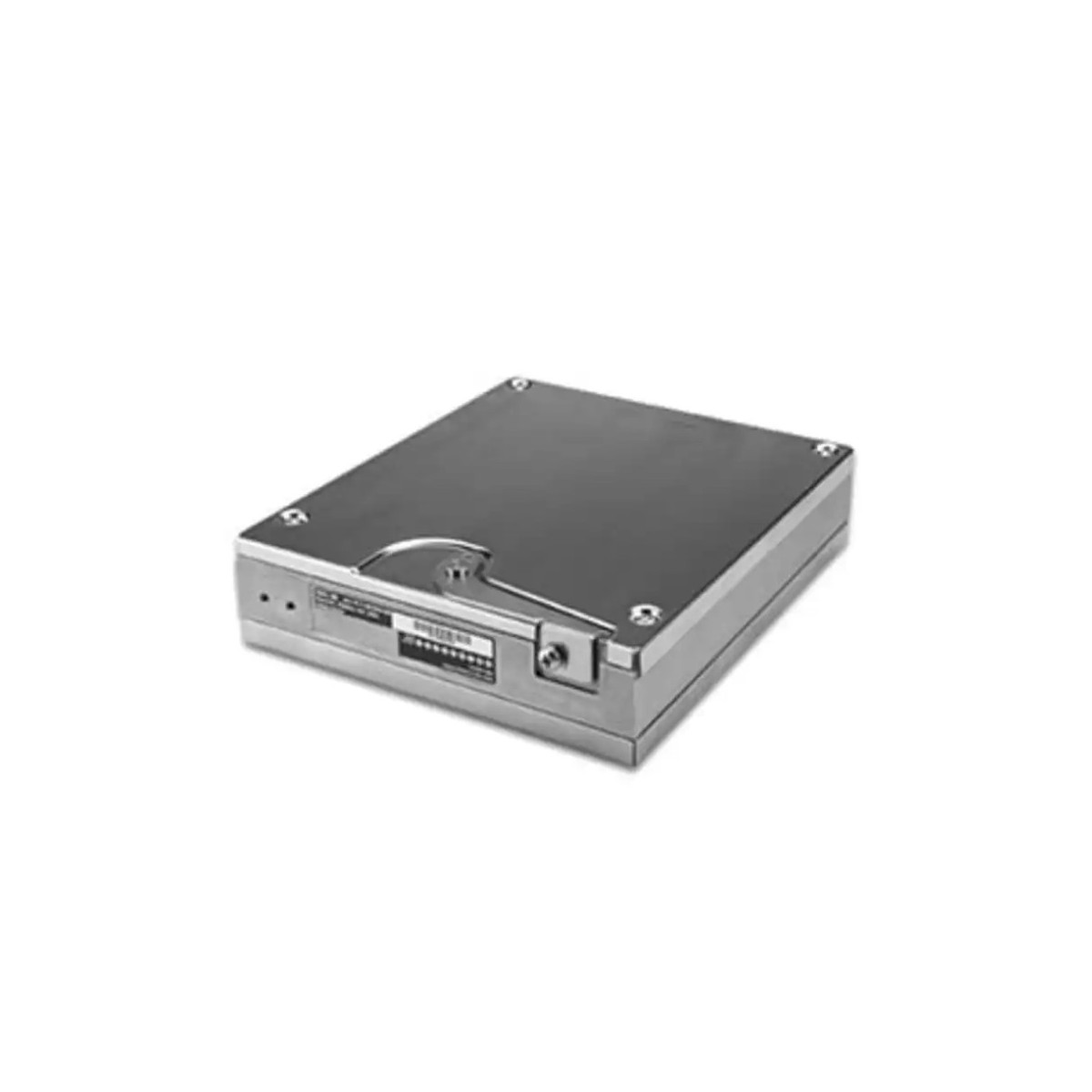

GDL 88 H Diversity

Physical & Performance

Unit size, WxHxD: 1.75" x 6.17" x 7.12" (4.44 x 15.67 x 18.08 cm) including mounting rack and connectors

Weight:

• 3.75 lbs (GDL 88)
• 3.87 lbs (GDL 88 with Diversity)
• 4.13 lbs (GDL 88 with WAAS GPS)
• 4.25 lbs (GDL 88 Diversity with WAAS GPS)

Temperature: -55°C to +70°C

Operating altitude: To 55,000 ft

Power input: 14 or 28 VDC, 20 W max.

Cooling input: Integrated

Environmental compliance (TSO Approved): DO-160F

Software compliance (TSO Approved): DO-178 Level D and Level B

Hardware compliance (TSO Approved): DO-254 Level C

TSO compliance (Approved): TSO-C145c (B2), TSO-C154c (A1S/A1H), TSO-C157A, TSO-C166b (A1/A1S), TSO-C195a (C1,C2,C3)
