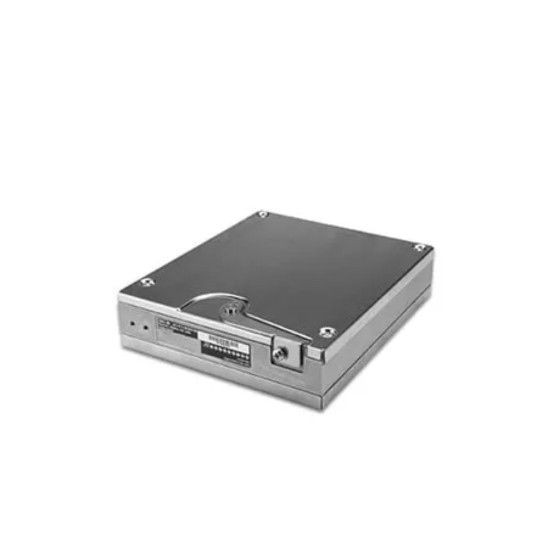

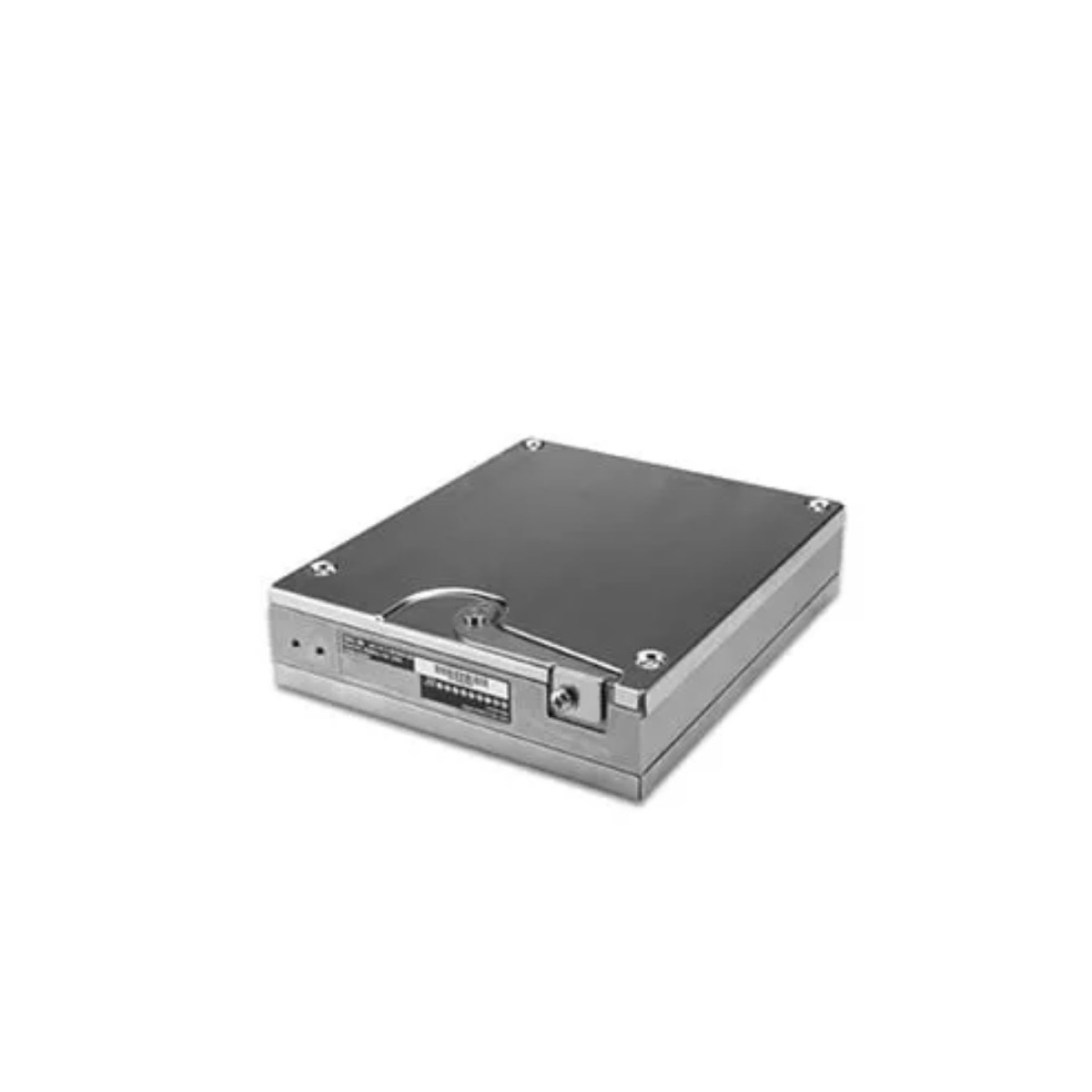

GDL 84 With Flight Stream 110 Kit

Physical & Performance

Unit size, WxHxD: 1.75" x 6.17" x 7.12" (4.44 x 15.7 x 18.1 cm) including mounting rack and connectors

Weight: 4.13 lbs (1.87 kg) with WAAS GPS

Temperature: -55°C to +70°C

Operating altitude: To 55,000 ft

Power input: 14 or 28 VDC (20 W max.)

Transmitter output: 4 dBm (2.5 mW)

Cooling input: Integrated

Environmental compliance (TSO Approved): DO-160F

Software compliance (TSO Approved): DO-178 Level D and Level B

Hardware compliance (TSO Approved): DO-254 Level C

TSO compliance (Approved): TSO-C145c (B2), TSO-C154c (A1S/A1H), TSO-C157A, TSO-C166b (A1/A1S), TSO-C195a (C1,C2,C3)
