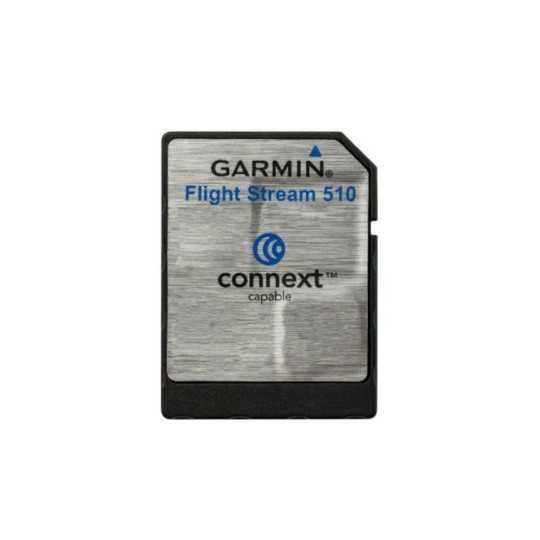

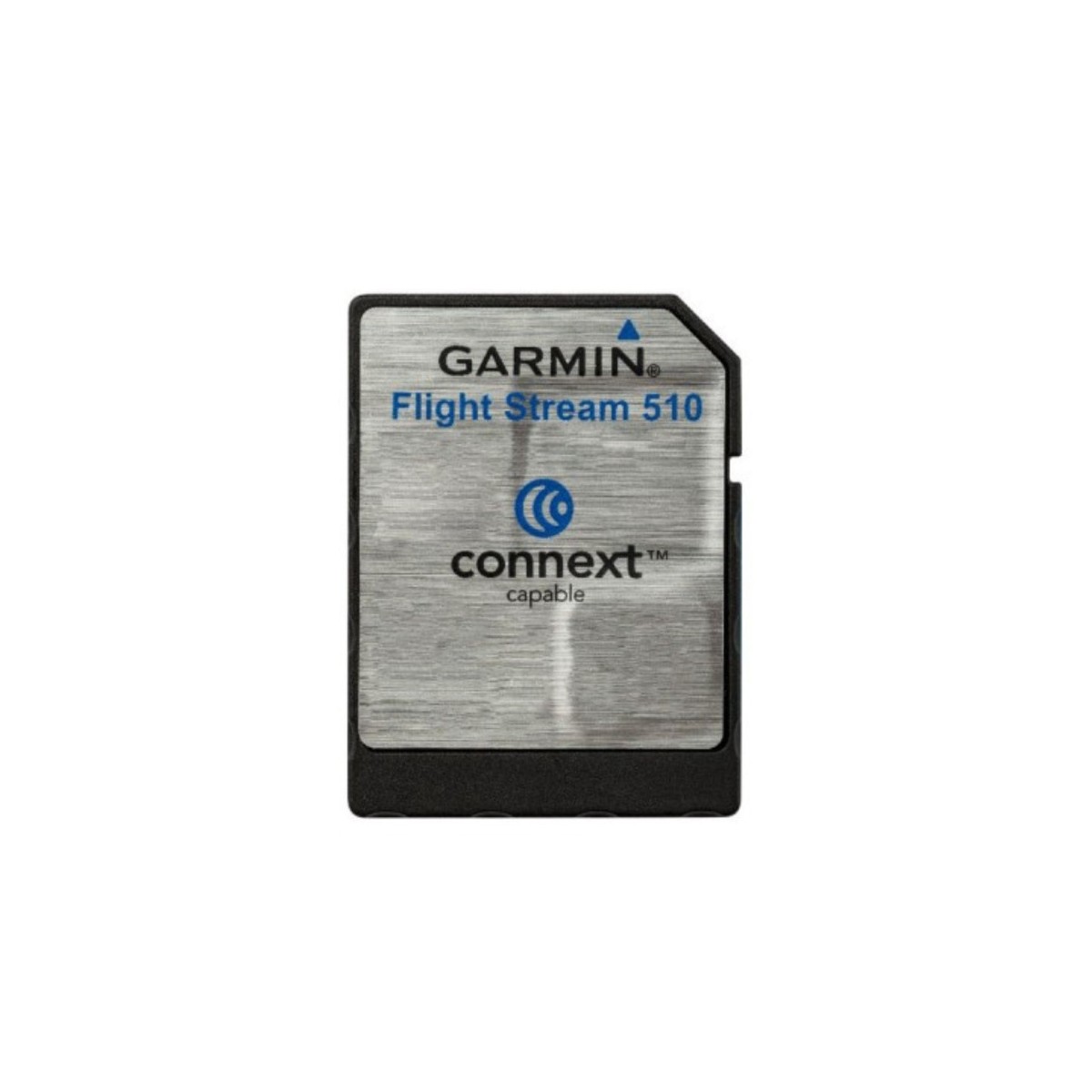

Flight Stream 510

Physical Characteristics

• Width: 0.94" (2.4 cm)
• Height: 1.26" (3.2 cm)
• Thickness: 0.08" (0.2 cm)

General Specifications

• Operating temperature range: -20° C to +55° C
• Software compliance: RTCA DO-178B Level E
• Hardware compliance: RTCA DO-254 Level D
• Environmental compliance: RTCA DO-160F
• TSO compliance: TSO-C113A

Memory Card Specifications

• Class: MMC
• Capacity: 32 GB

Wi-Fi Specifications

• Class: 802.11 b/g/n
• Effective unimpeded Wi-Fi range: 65 ft (20 m)
• Transmitter power: 10dBm (10mW)

Bluetooth® Specifications

• Version: 3.0
• Class: 2
• Transmitter power: 4dBm (2.5mW)
• Effective unimpeded Bluetooth range: 33 ft (10m)
