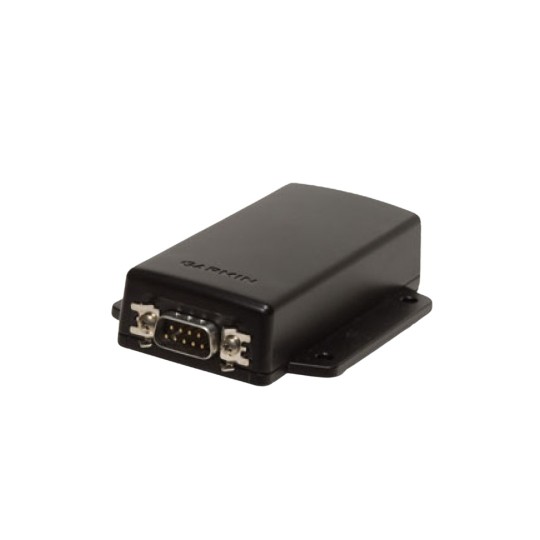

Flight Stream 210

Physical Characteristics

• Width: 2.74" (7.0 cm)
• Height: 0.92" (2.3 cm)
• Length: 3.93" (10.0 cm)
• Unit weight: 0.156 lbs (0.07 kg), excluding connector kit; 0.27 lbs (0.12 kg), including connector kit

General Specifications

Flight Stream Transceiver Specifications

• Operating temperature range: -20° C to +70° C
• Input voltage range: 9.5 to 33.0 VDC
• Software compliance: RTCA DO-178B Level E
• Environmental compliance: RTCA DO-160F
• TSO compliance: TSO-C157, DO-267A

Bluetooth® Specifications

• Version: 3.0
• Class: 2
• Transmitter power: 4 dBm (2.5 mW)
• Effective unimpeded range: 33 ft (10 m)

Power Specifications

• Max current @ 28 VDC: 50 mA
• Max current @ 14 VDC: 100 mA
