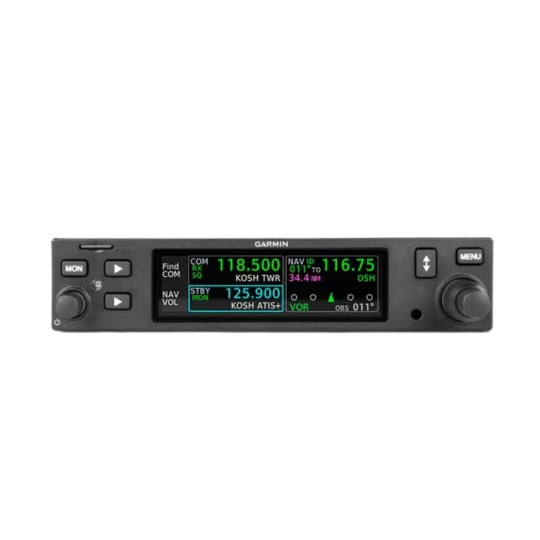

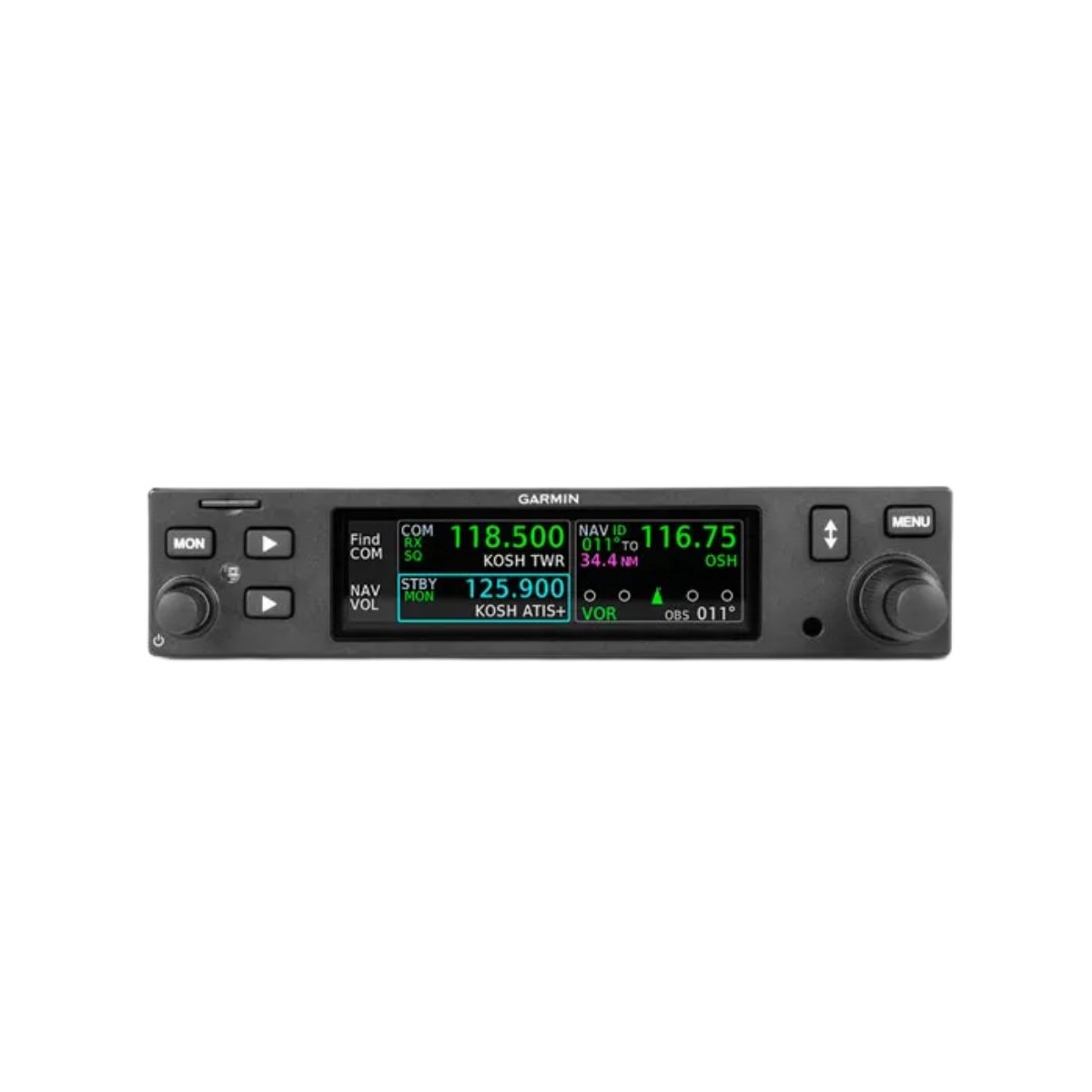

GNC® 215 NAV/COMM Radio for Helicopters

Performance:

Communication channels: 760 with 25 kHz spacing; 2280 channels with 8.33 kHz spacing
Frequency range: 118.000 to 136.992 MHz
Transmit power: 10 watts (16 watts with optional enablement)
Input voltage range: 9 to 33 VDC
Operating temperature range: -20 to +55 C
Certifications: TSO C169a (transmitting and receiving), TSO C128a (stuck mic), TSO C34e (ILS glide slope receiving), TSO C36e (ILS localizer receiving), TSO C40c (VOR radio receiving)

Physical:

Dimensions: 1.35”H x 6.25”W (3.43 cm x 15.88 cm)
Weight: 2.3 lbs (1.0 kg) unit only; 3.1 lbs (1.4kg) with mounting rack and connectors
Depth: 10.32 inches (26.21 cm) behind panel, including mounting rack and connectors
