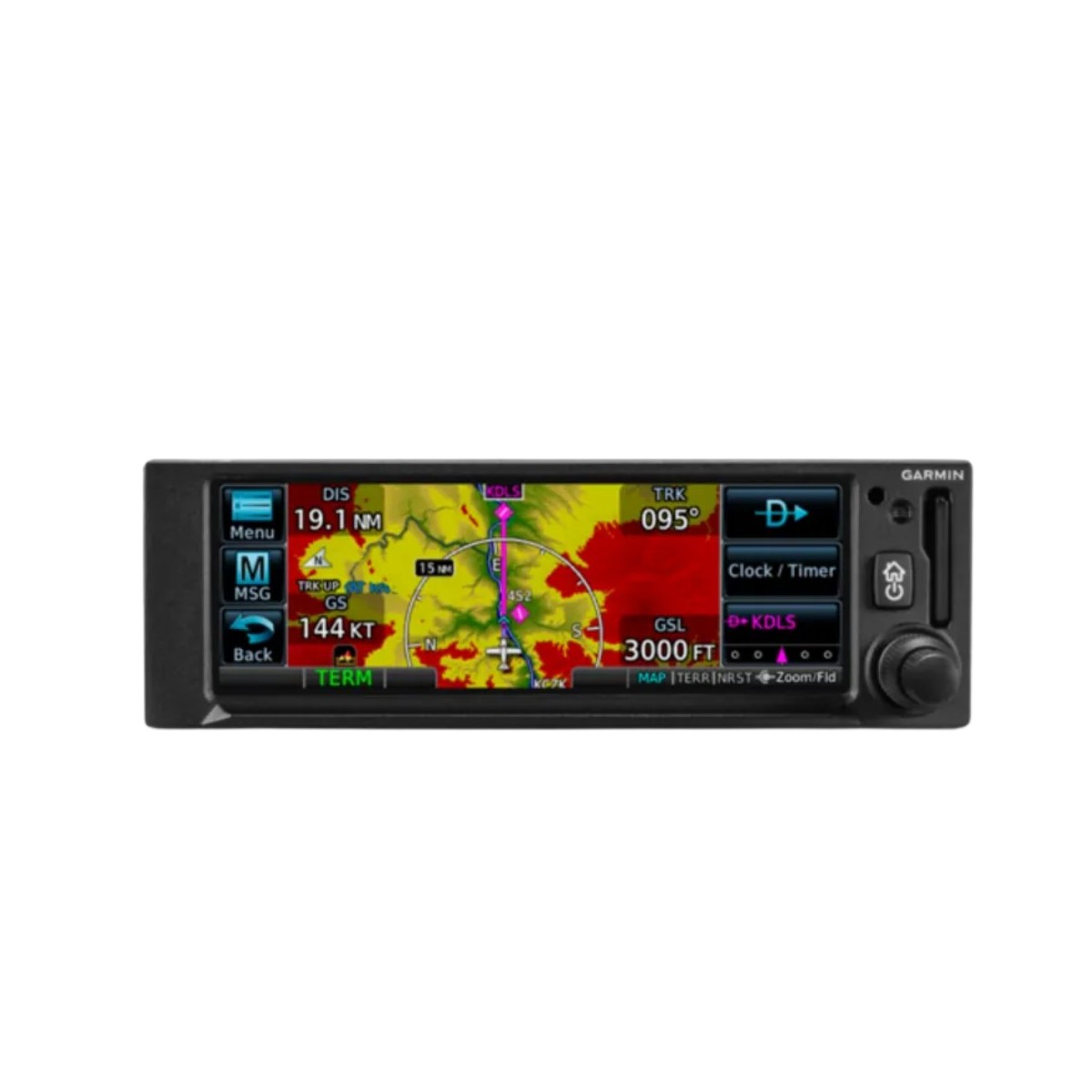

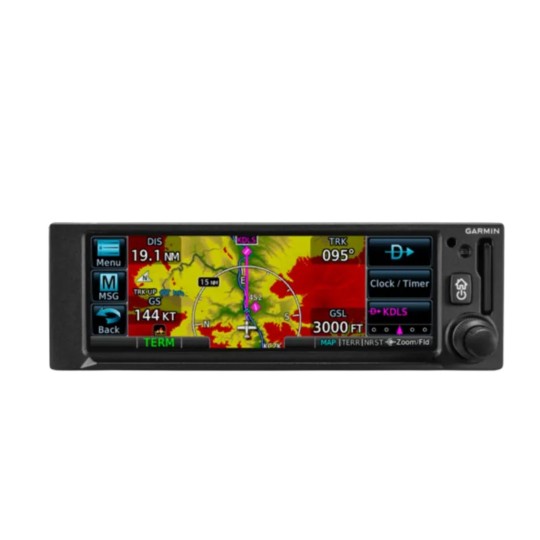

GPS 175 GPS Navigator

Physical and Performance

• TSO applicability: C146e Class 3; C157b Category 1; C165a; C195b Category B1, B3, B5, B7
• Display size: 4.8" (122.5 mm) diagonal
• Display resolution: 732 pixels (W) x 240 pixels (H)
• Unit bezel height: 2.02" (51.0 mm)
• Unit bezel width: 6.25" (159.0 mm)
• Unit depth with connectors: 6.58" (167 mm) (measured from face of aircraft panel to rear of connector backshells)
• Unit weight: 1.3 lbs (0.6 kg)
• Maximum altitude: 35,000 ft
• Input voltage range: 9 VDC - 33 VDC
• Maximum display brightness: 260 fL
• Operating temperature range: -20° C to 55° C (-4° F to 131° F)
• Bluetooth version: 4.2
• Number of GPS channels: 15 (12 GPS and 3 GPS/WAAS/SBAS)
• LAT/LON position accuracy: <1.25 meter RMS horizontal, < 2 meter vertical, with WAAS
• Maximum velocity: 1,000 knots (above 60,000 feet)
• Position update Interval: 0.2 sec (5 Hz)
