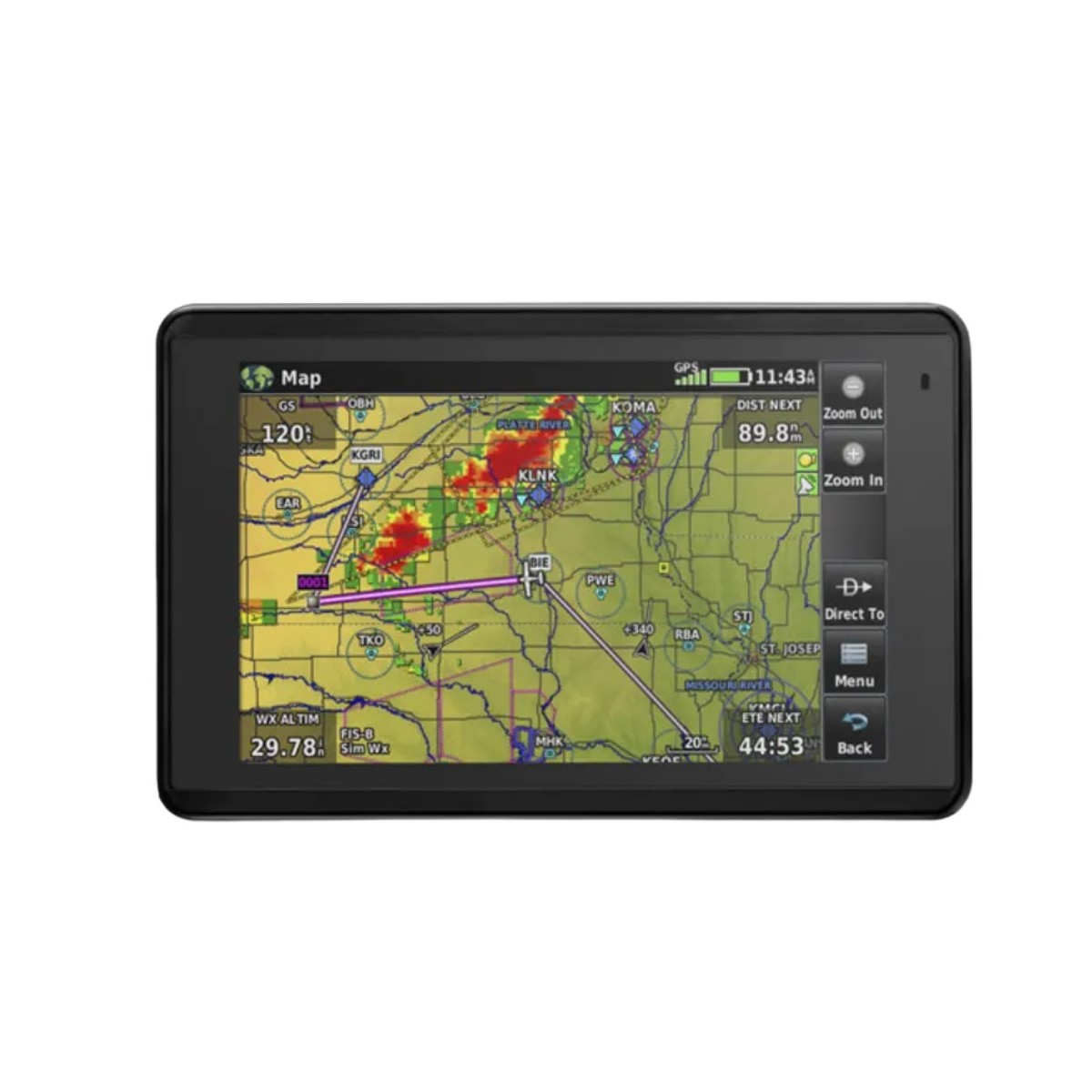

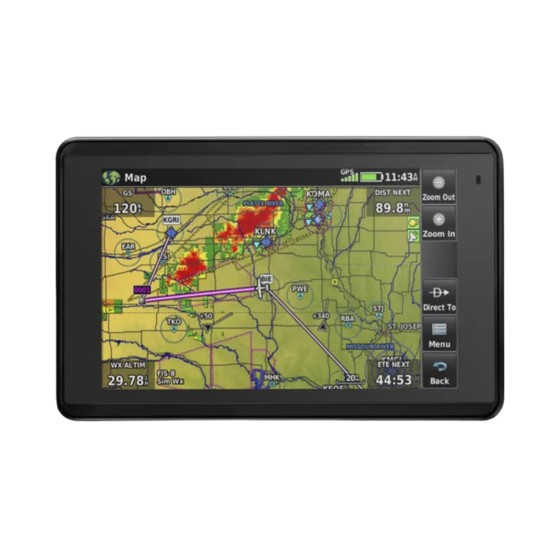

aera® 660

Physical & Performance

• Physical dimensions: 5.5”W x 3.4”H x .8”D (14.1 x 8.7x 2.1 cm)
• Display size, WxH: 4.35"W x 2.61"H (11.1 x 6.6 cm); 5.08" diag (12.9cm)
• Display resolution, WxH: 480 x 800; portrait and landscape orientation
• Display type: touchscreen WVGA color TFT with white backlight
• Weight: 8.64 ounces (245 g) with battery; 7.23 ounces (205 g) without battery
• Battery: removable, rechargeable lithium-ion
• Battery life: Up to 4 hours during most daytime conditions, (80% backlight) and wireless connectivity in the cockpit, e.g. GTX 345; up to 6 hours during typical nighttime conditions, (5% backlight) and without wireless connectivity.
• SBAS/WAAS/GLONASS receiver: high-sensitivity with WAAS position accuracy
• Voltage range: 10-35
• IFR or VFR: VFR
• Traffic Information Services (TIS) alerts compatible: yes
• Accepts data cards: yes (microSD™ cards)
