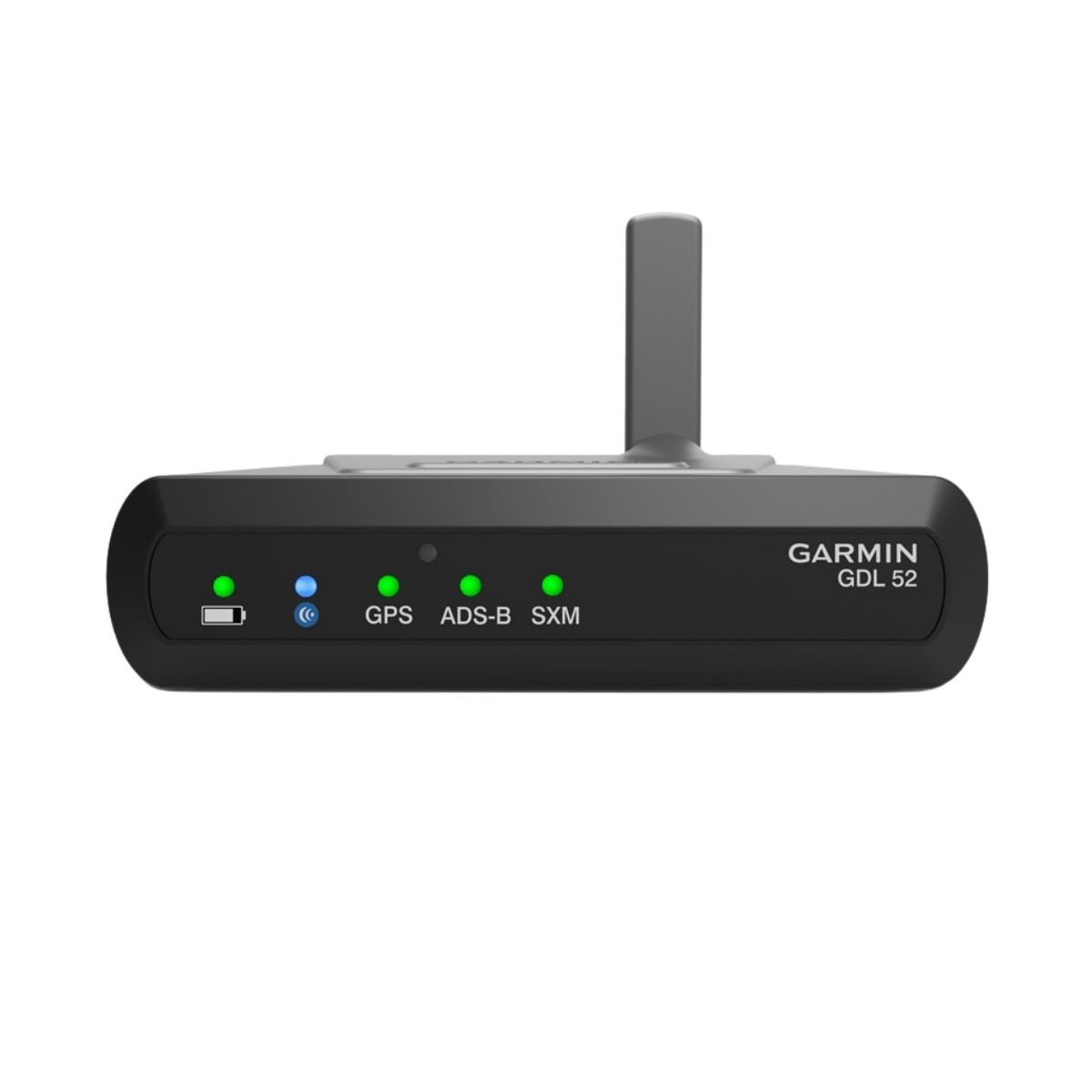

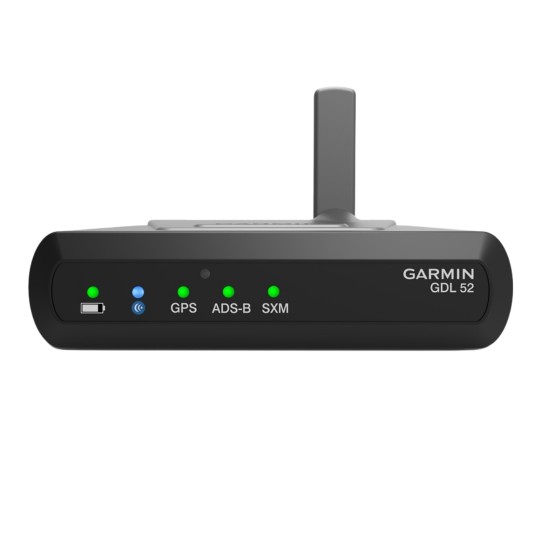

GDL® 52 Portable SiriusXM®/ADS-B Receiver

Physical

• Unit dimensions, WxHxD: 4.9" x 1.3" x 3.4" (12.44 x 3.30 x 8.64 cm)
• Weight: 0.75 lbs (0.34 kg)
• Anti-slip mat (bottom of unit only)

Performance

• Operating temperature: -20°C to +60°C (-4°F to 140°F)
• Operating altitude: To 55,000 ft
• Nominal operating velocity range: 0 – 800 kts (411 m/s)
• Power input: 10 to 32 VDC, 3.5 W max.

• Battery type: Lithium-ion rechargeable (built-in)
• Charge temperature: Unit may not charge at extreme temperatures below 0° C (32° F) or above 32° C (90° F)
• Typical battery operating time: 5 hours

Connections

• 18-pin power and data connector
• microUSB
• ADS-B MCX antenna port
• SiriusXM® MCX antenna port
• GPS MCX antenna port
• 3.5 mm audio jack (audio out only)
• Wireless Connext™ (Bluetooth®)
